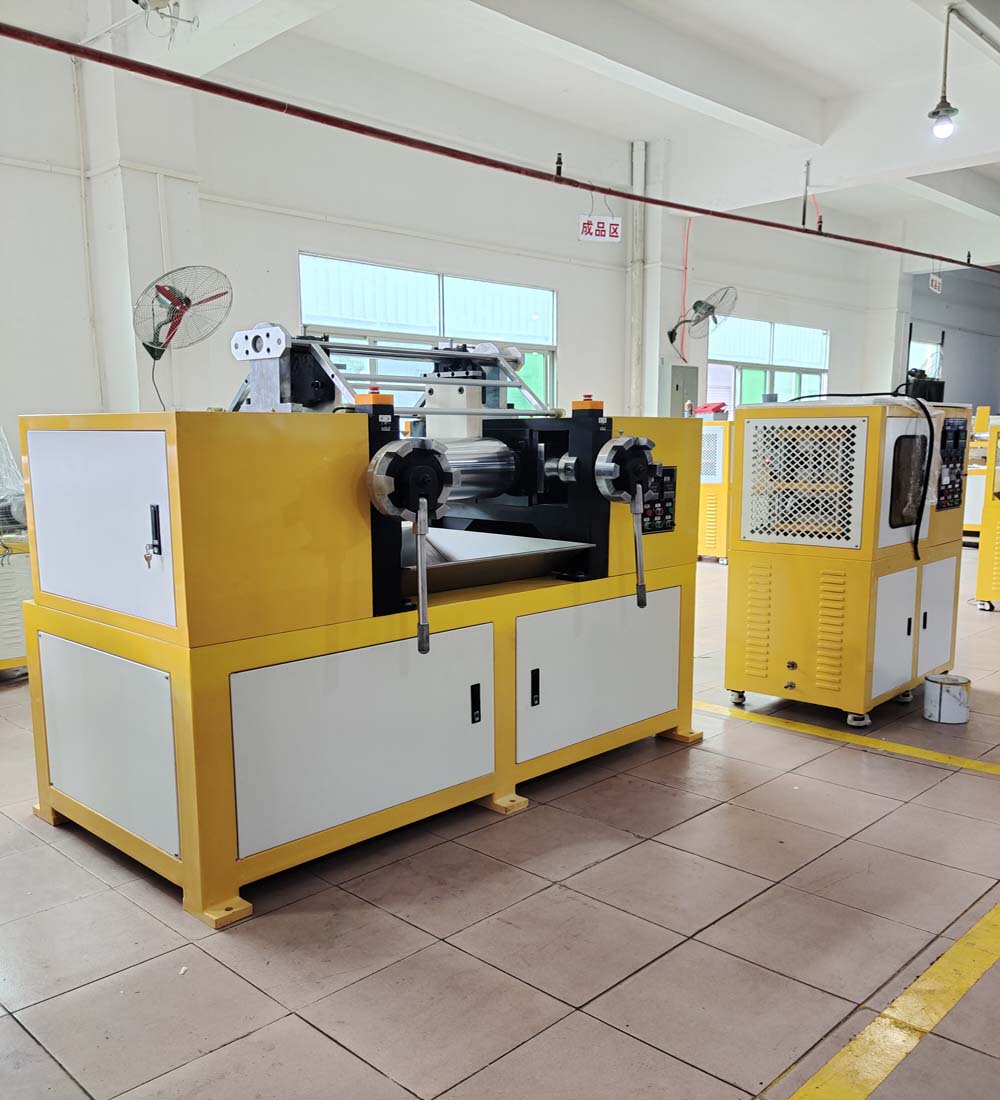

xh-401電加熱系列 electric heating series
產品特點 product features:
設備體積小、易操作、噪音低、節能環保；
small size, easy to operate, low in noise, energy-saving.
溫度自動補償，pid自整定功能，輥筒表面溫度始終保持均衡；
XH-401電加熱系列 Electric heating series
產品特點 Product Features:
設備體積小、易操作、噪音低、節能環保；
Small size, easy to operate, low in noise, energy-saving.
溫度自動補償，PID自整定功能，輥筒表面溫度始終保持均衡；
Temperature automatic compensation, PID self-setting function, roller surface temperature always keep balance.
采用臺灣減速電機，噪音低、運行穩；
Taiwan reduction motor, low noise and stable operation
全方位多角度安全防護裝置，緊急停止或帶反轉功能。
Comprehensive and multi-angle safety protection device, emergency stop and reverse function
型號 Model No. | XH-401A | XH-401B | XH-401C |
輥筒轉速 Roller speed | 定速 Fixed speed | 單調頻 Single frequency inverter | 雙調頻 Dual frequency inverter
|
控制方式 Control Mode | 按鍵式或PLC系統程控 PID control or PLC program control | ||
輥筒尺寸 Size of roll | 120×350mm或指定(or customized) | ||
加熱方式 Heating Mode | 電加熱/油加熱 electrical heating / oil heating | ||
冷卻方式 Cooling Mode | 無冷卻或自來水冷卻（可選配） No cooling or tap water cooling (optional) | ||
調距方式 Roll gap adjustment | 手動調節或電動調距 Manual or electric gap adjustment | ||
翻膠方式 Flipping material | 手動翻膠或自動翻膠 Manual or automatic flipping | ||
安全裝置 Safety device | 反轉停止或緊急彈開裝置 Reverse stop or emergency opening system | ||
電機功率 Motor Power | 0.75kw或指定×1臺 0.75kW or customized*1 | 0.75kw或指定×2臺 0.75kW or customized*2 | |
體積 Volume（W×D×H） | 1100mm×560mm×1150mm | ||
重量 Weight | 400kg | 450kg | |
電源 Power Supply | 3∮，AC380V | 3∮，AC380V | 3∮，AC380V |
